Extending and Evaluating
Visual Information Seeking for Video Data
Stacie Hibino
EECS Department, Software Systems Research Laboratory
The University of Michigan, 1301 Beal Avenue, Ann Arbor, MI 48109-2122 USA
E-mail: hibino@eecs.umich.edu
ABSTRACT
Extending and adapting the visual information seeking
paradigm for video analysis would empower casual users
to explore temporal, spatial, and motion
relationships between video objects and events.
Several extensions are required to accomplish this:
extensions to dynamic queries to specify multiple
subsets, customized temporal, spatial, and
motion query filters, and the design of new spatio-
temporal visualizations to highlight these
relationships. In my thesis research, I am working on
these extensions by combining a new multimedia visual
query language with spatio-temporal visualizations into an
integrated MultiMedia Visual Information Seeking
(MMVIS) environment. This research summary describes
my overall approach, research goals, and evaluation
plan.
Keywords
Video analysis, dynamic queries, temporal query filters,
interactive visualizations.
INTRODUCTION
Visual Information Seeking (VIS) is a framework for
information exploration where users filter data through
direct manipulation of dynamic query filters [2]. A
visualization of the results is dynamically updated as users
adjust a query filter, thus allowing them to incrementally
specify and refine their queries. In this way, users also see
the direct correlation between adjusting parameter values
and the corresponding changes in the visualization of
results. This approach has been shown to aid users in
locating information, as well as for searching for trends
and exceptions to trends—and to accomplish such tasks
more efficiently than through traditional forms-based
methods [1]. If the VIS paradigm was extended and
applied to video analysis, users would be empowered to
explore various relationships (e.g., temporal relationships
such as how often different types of events start or end at
the same time) in a way that was not previously possible
through other traditional means (e.g., timelines for
temporal analysis) or other video analysis approaches
(e.g., [3, 5]).
EXTENDING VIS FOR VIDEO DATA
I have identified several extensions to the original VIS
framework that are necessary to adapt VIS for the analysis
of video data.
These extensions include:
mechanisms for selecting multiple subsets of
different types of events,
specialized temporal, spatial, and motion query
filters for exploring the corresponding types of
relationships between the subsets formed, and
user-customizable spatio-temporal
visualizations for highlighting, for example, the
occurrence or frequency of the specified relationships.
In MMVIS, we provide subset query palettes (i.e.,
duplicate sets of query filters placed on palettes) for
selecting multiple subsets. We have designed specialized
temporal query filters [4], and have done some
preliminary work on spatial and motion query filters. We
have focused initial visualization work on temporal
visualizations that cluster temporal relationships. The
integrated MultiMedia Visual Information Seeking
(MMVIS) environment currently supports the features
listed above.
Scenario Applying MMVIS to CSCW Data
In order to better understand how MMVIS would work,
consider the following scenario: HCI researchers collect
CSCW video data to analyze and characterize the process
flow of a planning meeting between three subjects
("Carol," "Richard," and
"Gary") collaborating from remote sites. The
data is coded to indicate when each person speaks as well
as to characterize the design rationale (DR) of what is
being said (e.g., to indicate when alternatives, digressions,
etc., take place in the meeting). Researchers can use
subset query palettes to select two subsets: A) talking and
non-verbal events and B) DRs. They can then
explore various relationships between members of
these subsets using the specialized relationship query
filters. Our temporal query filters form a temporal visual
query language (TVQL) [4] and are presented to the user
on a single palette (see Figure 1, Temporal Query palette).
Keeping within the VIS paradigm, the visualization of
results are dynamically updated as users specify the
subsets as well as the temporal and/or spatial relationships.
In Figure 1, TVQL specifies the relationship where A and
B events start at the same time, but A's end before or at
the same time as B's.

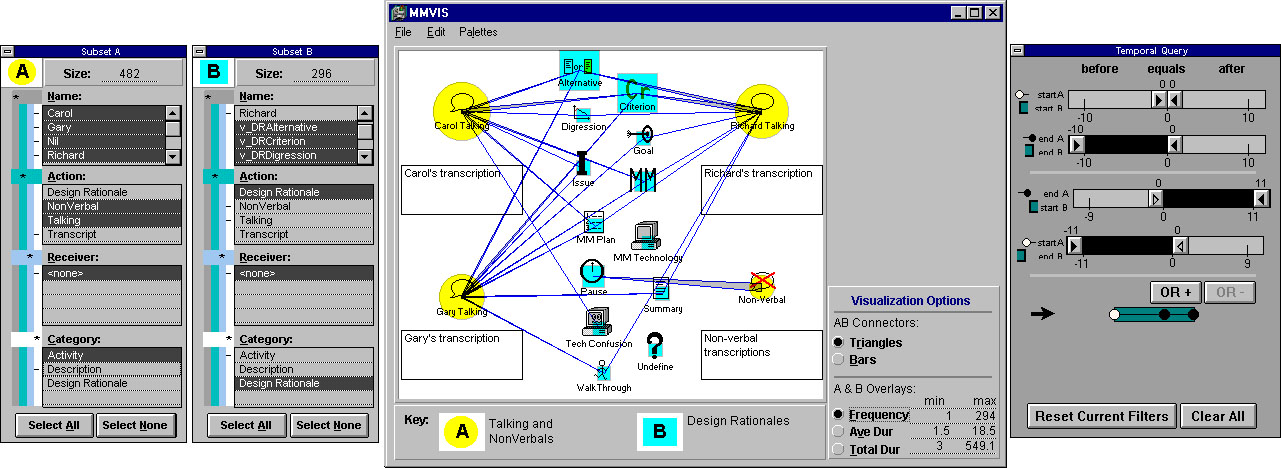

Figure 1. MMVIS Environment. Sample temporal analysis of CSCW video data collected during a planning meeting
study.
RESEARCH GOALS
The research goals of this thesis work are:
to design a multimedia visual query
language for temporal, spatial, and motion queries
(via making significant extensions to dynamic query
filters),
to enhance the visual query environment with user-
customizable spatio-temporal visualizations
dynamically linked to the data for providing immediate,
contextual feedback about temporal and/or spatial
relationships,
to develop optimized query processing and
incremental update strategies for MMVIS queries and
visualizations,
to verify the feasibility of the proposed environment
through prototype implementation,
to evaluate the functionality, performance, and
usability of the visual query language and integrated
MMVIS environment using case studies.
EVALUATION
Each component of the visual query language (i.e.,
temporal, spatial, and motion filters) will be evaluated for
functionality, efficiency, and usability. Functionality
testing will involve comparison to existing languages or
formal specifications, and identification of the expressive
power of the proposed query paradigm (i.e., what types of
queries can and cannot be made). Efficiency testing will
be conducted to compare and contrast algorithms for
processing queries and updating the visualization. We
will test the algorithms under different conditions (e.g.,
data set size, data distribution) to determine under what
circumstances one performs better than another, as well as
to examine the feasibility of (dynamically) adapting query
processing to these different conditions.
Usability studies will be run to examine the conceptual
understanding of the query interface, as well as to
determine any increased user productivity over other
(traditional) query interfaces. Usability evaluation will be
split into two types of studies, one to evaluate the query
language component, and the other to evaluate the
integrated query-visualization environment. In the first
study, we will separate out the query interface and focus
on evaluating the users' conceptual understanding of it. In
particular, the study will compare subjects' ability (speed
and accuracy) to specify and interpret various types of
queries using the visual query language (VQL) component
and a forms-based query language (FBQL) interface. In
the second study, we will examine the users' ability to
interpret the visualizations as well as the efficiency of the
integrated environment over others to identify data trends
and outliers.
STATUS AND FUTURE WORK
MMVIS has been implemented on a multimedia PC
(MPC) platform using a ToolBook interface to a database
library. All temporal analysis components have been fully
integrated and are fully functional. In the future, we plan
to continue work on several aspects of MMVIS, including:
alternative visualizations, additional presentation options
(e.g., to remove extra clutter), and integration of spatial
and motion query filters. In addition, we will continue
formal evaluation of TVQL and query processing
optimizations.
ACKNOWLEDGMENTS
This work was supported in part by UM Rackham
Fellowship, and NSF NYI #94-57609.
REFERENCES
Ahlberg, C., Williamson, C., & Shneiderman, B.
(1992). Dynamic Queries for Information Exploration:
An Implementation and Evaluation. CHI'92
Conference Proceedings. NY:ACM Press, pp.
619-626).
Ahlberg, C., & Shneiderman, B. (1994). Visual
Information Seeking: Tight Coupling of Dynamic
Query Filters with Starfield Displays. CHI'94
Conference Proceedings. NY:ACM Press, pp.
619-626.
Harrison, B.L., Owen, R., & Baecker, R.M. (1994).
Timelines: An Interactive System for the Collection of
Visualization of Temporal Data. Proc. of Graphics
Interface '94. Canadian Information Processing
Society.
